Key Features
-7" 1920 x 1200 IPS LCD Monitor
-HDMI 2.0 and 12G-SDI Input/Output
-1600 cd/m² Brightness, Touchscreen
-Up to DCI 4K I/O, 10-Bit, HDR Support
-Dual L-Series/NP-F Battery Plate
-1200:1 Contrast Ratio, 3D LUT Support
-160° Viewing Angle
-HDMI/SDI Cross Conversion Support

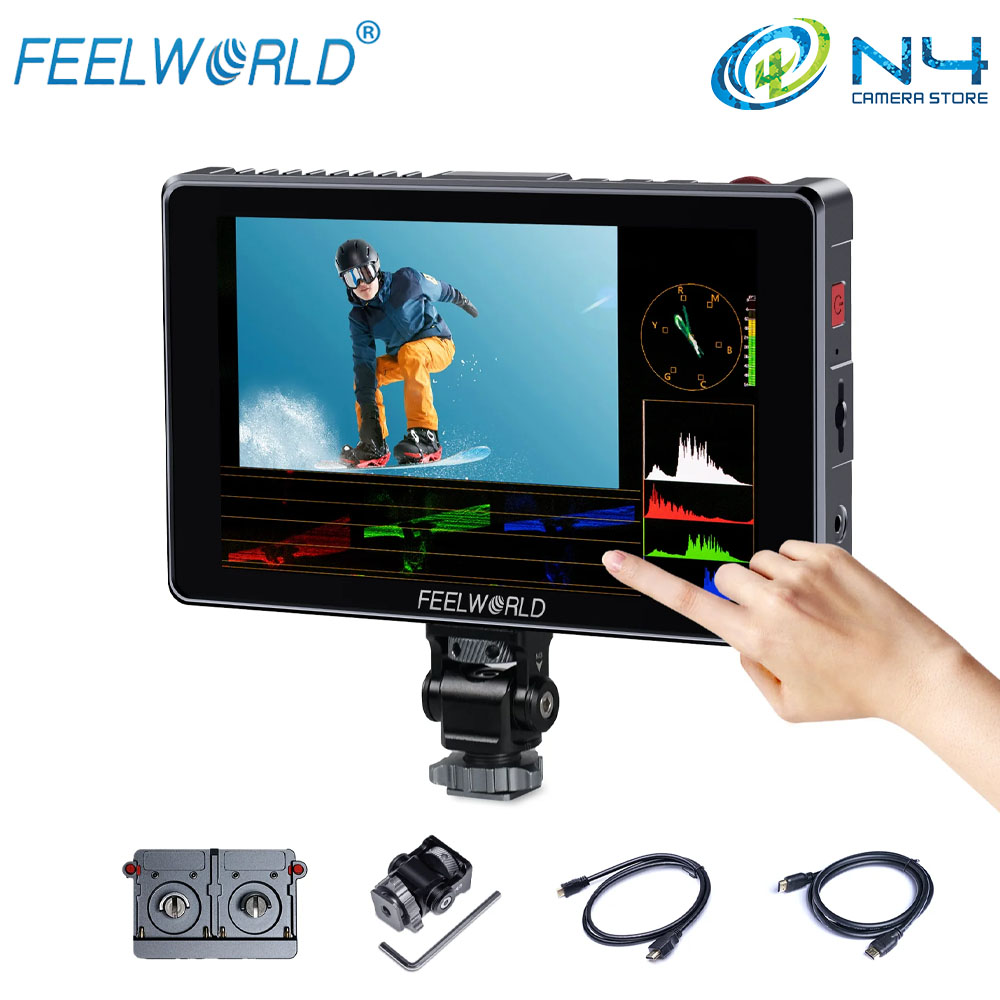

Monitor your 4K HDR signals with clarity in the field with the S7 7" 12G-SDI/HDMI 2.0 Camera Field Monitor from Feelworld. This compact, 7" touchscreen field monitor with a durable aluminum chassis features 12G-SDI and HDMI 2.0 inputs and outputs so you can view your 4K footage without the need for down-res. The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and 1600 cd/m² brightness for a crisp viewing experience, even in sunlight.
Other features include HDMI/SDI cross conversion to eliminate the need for external converters, a 16-channel audio meter, 10-bit color depth, HDR HLG support, applying 3D LUTs on loop output, a 3-color tally light, cooling fans, and support for 11 languages. Numerous professional imaging tools are built-in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered using a power adapter or the rear dual L-series battery mount.
Built-In Image Tools
-3D LUT Log to Rec.709, user 3D LUT upload (up to 32)
-Waveform (RGB, YUV, Y)
-HDR
-Vector
-Histogram (RGB, Y)
-Embedded audio
-Focus assist (red/green/blue, three focus colors optional; 1-10 focus level adjustable)
-False colors (Normal, ARRI)
-Overexposure (10IRE~100IRE adjustable)
-Check field (red, green, blue, mono)
-Scan mode (underscan, overscan)
-Anamorphic mode (1.33x, 1.6x, 2.0x, 2.0x mag, user)
-Image flip (H flip, V flip, H_V flip)
-Image freeze
-Center marker
-Safety frames (80/85/90/93/96%, 2.35:1)
-Aspect ratio (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, full-screen)
-Ratio marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
-Marker color (red, green, blue, black, white, gray)
-Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, or custom rows and columns from 2-9)
-Zoom mode (2x, 4x, 9x, 16x, user)
-Pixel-to-pixel
-Color gamut ( DCI-P3, Rec.709)
-Color temperature (5600/6500/9300K, user)
