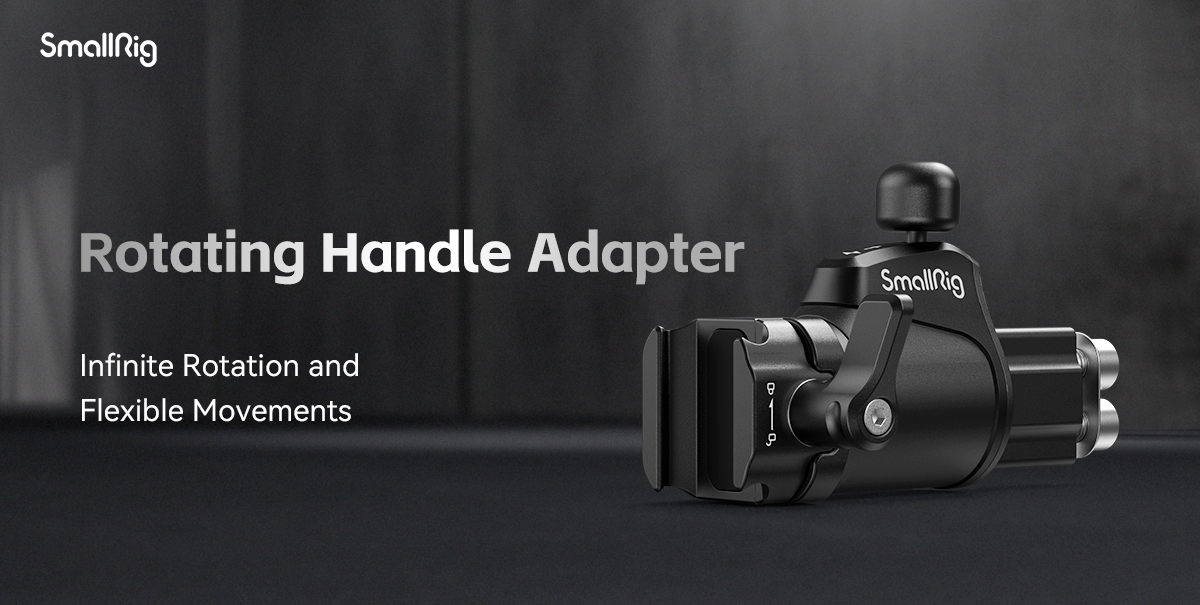

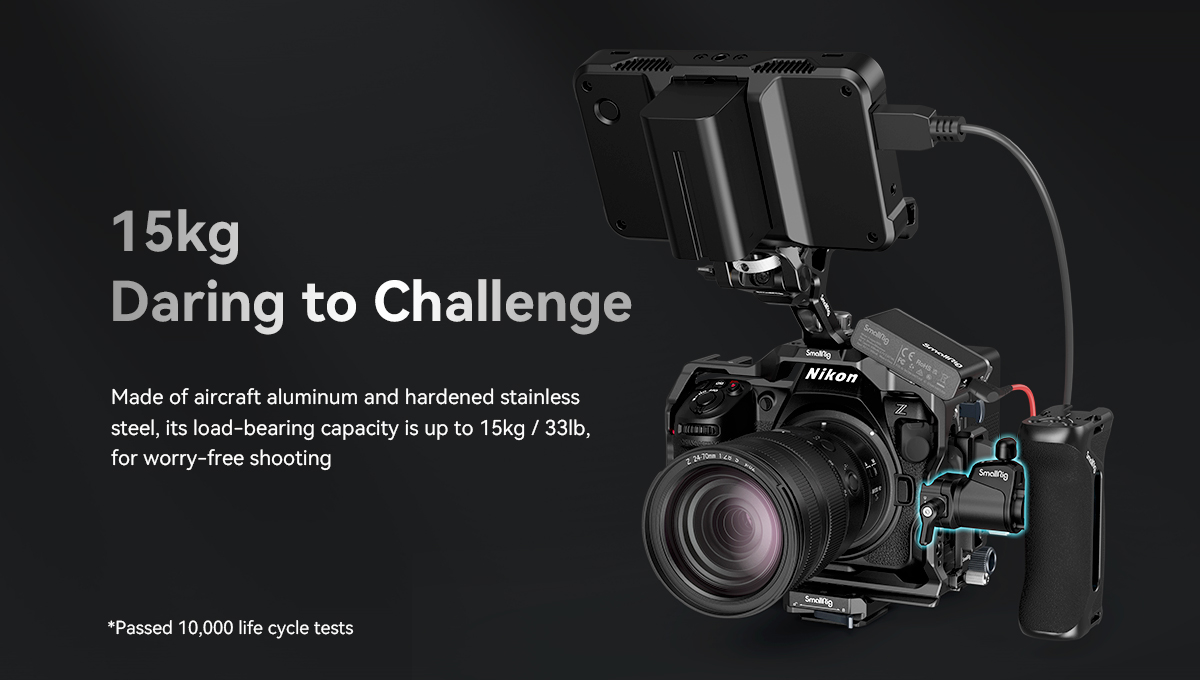

SmallRig Universal Rotating Handle Adapter 4112 is designed to facilitate multi-angle shooting. Built-in 8 hardened stainless steel needle rollers lock the rotating shaft to achieve precise positioning and enable two-way 360-degree stepless rotation for comfortable camera movement. The axis of the adapter is made of hardened stainless steel, and the main body is made of aircraft grade aluminum alloy, making the item sturdy and durable. The adapter’s load-bearing capacity is 15 kg / 33.1lb. The adapter can be used on handles with grooves via two 1/4"-20 screws.
Designer: Kong, Tracy Joy
Note:

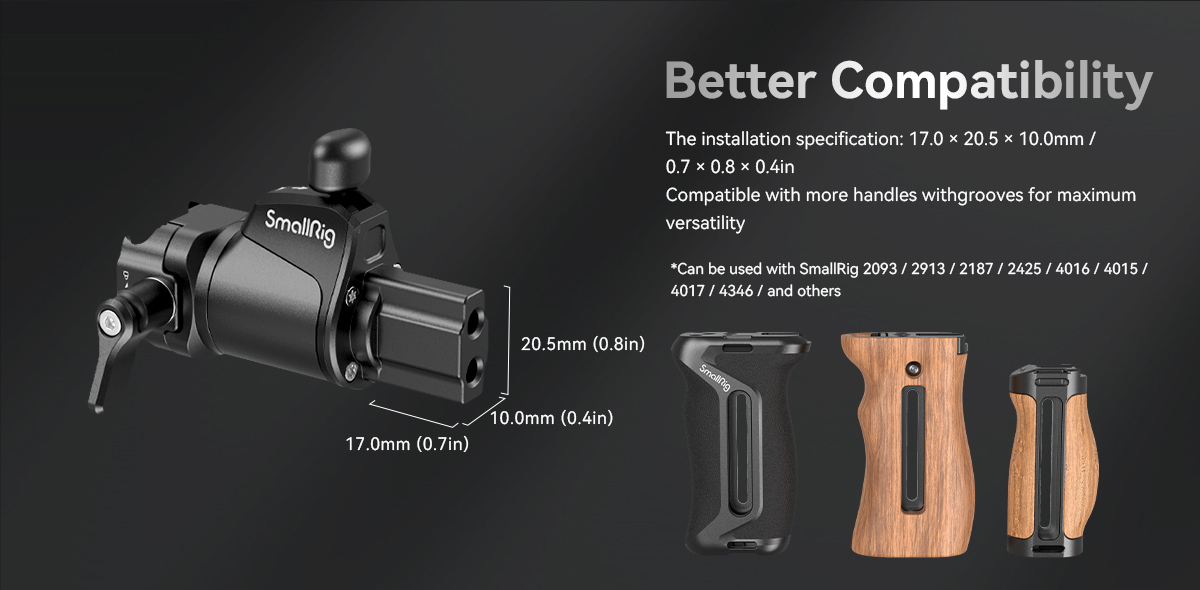

Please, measure the dimensions of the handle's groove to use other brands’ side handles to ensure it meets the requirements of 17 x 20.5 x 10 mm.
Compatibility:
1. Cages and plates with NATO Rail
2. This adapter is compatible with SmallRig's existing built-in groove handles, such as 2093, 2913, 2187, 2425, 4016, 4015, 4017, 4346, etc.

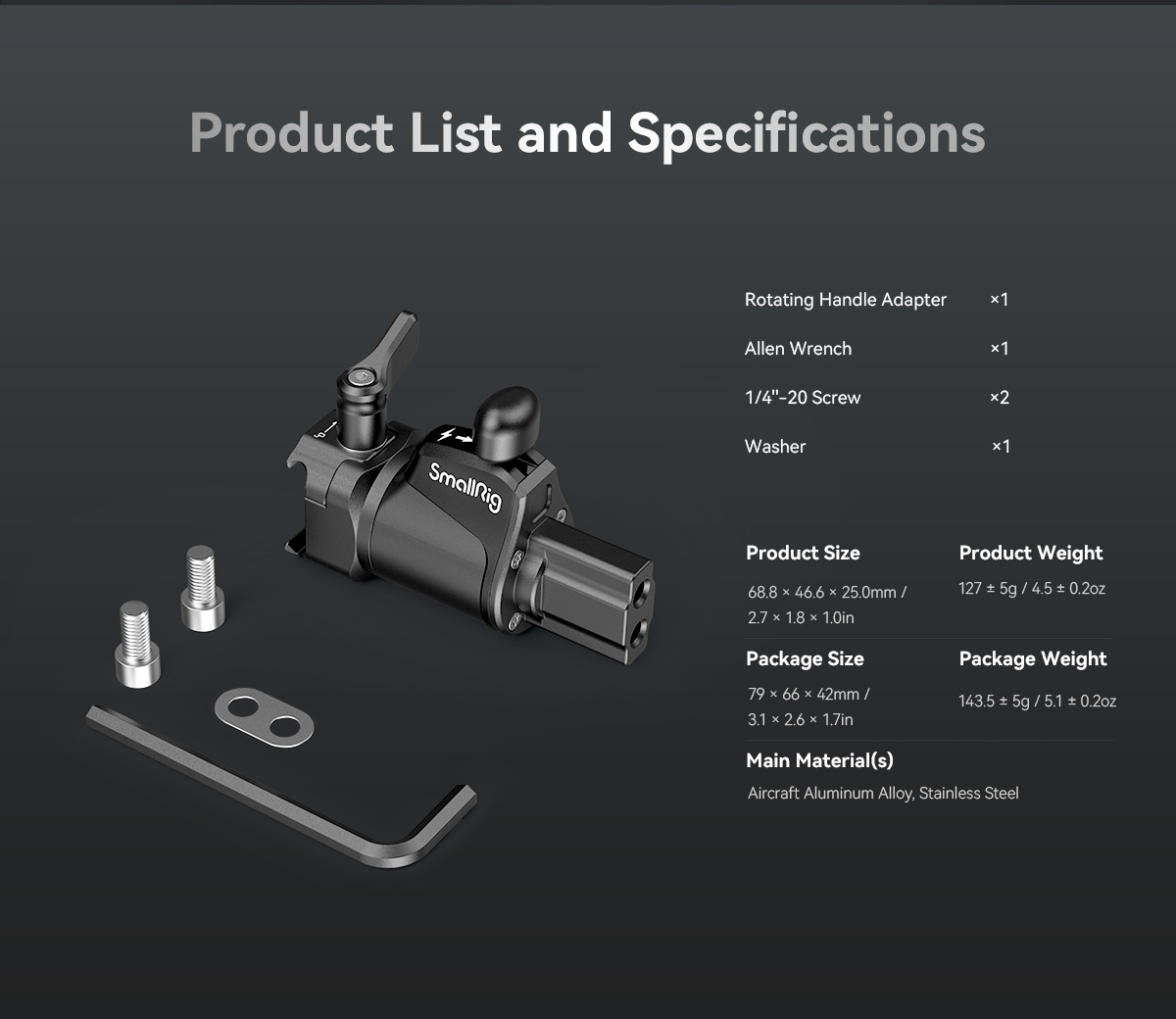

In the Box:
Handle Adapter x 1
Allen Wrench x 1
1/4”-20 Screw x 2
Screw Gasket x 1
Specifications
Product Dimensions: 68.8 x 46.6 x 25.0 mm
Package Dimensions: 79.0 x 66.0 x 42.0 mm
Product Weight: 127.0 g±5g
Package Weight: 143.5 g±5g
