1. Full Decoding Chip:Ensures full compatibility with Panasonic DMW-BLK22batteries, preventing pop-up warnings while supporting in-camera power display and charging with original Panasonicchargers.
2. Extended Battery Life:Includes two high-capacity batteries (1940mAh rated) forexceptional,long-lasting performance.
3. Efficient Dual Charging:Dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully chargingtwo batteries inapproximately2 hours for optimal efficiency.
4. Clear Power Indicators:Each charging channel features 5 LED lights that providereal-time battery level and charging status at a glance.
5. Versatile Charging Options:Equipped with a USB-C fast-charging port (22.5W), compatible with wall adapters, car chargers, and power banks for convenient charging anywhere.
6. Smart Safety Protection: Built-in over-temperature and over-voltage protections automatically slow down or halt charging when necessary to ensure battery safety and longevity.
Certifications:FCC, CE, RoHS, ISED
Note:
1. Recommended to use a power adapter with 22.5W or higher output.
2. When using a 5V / 2.4A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.
Work With
Panasonic LUMIX GH7 / GH6 / GH5 II / S9 / G9 II / S5 IIX / S5 II / S5 / L10
Packing List
Camera Battery Charger for DMW-BLK22x 1
Camera Battery for DMW-BLK22x 2
Battery Cover x 2
60W USB-C to USB-C Cable (1m / 3.3ft) x 1
Technical Data

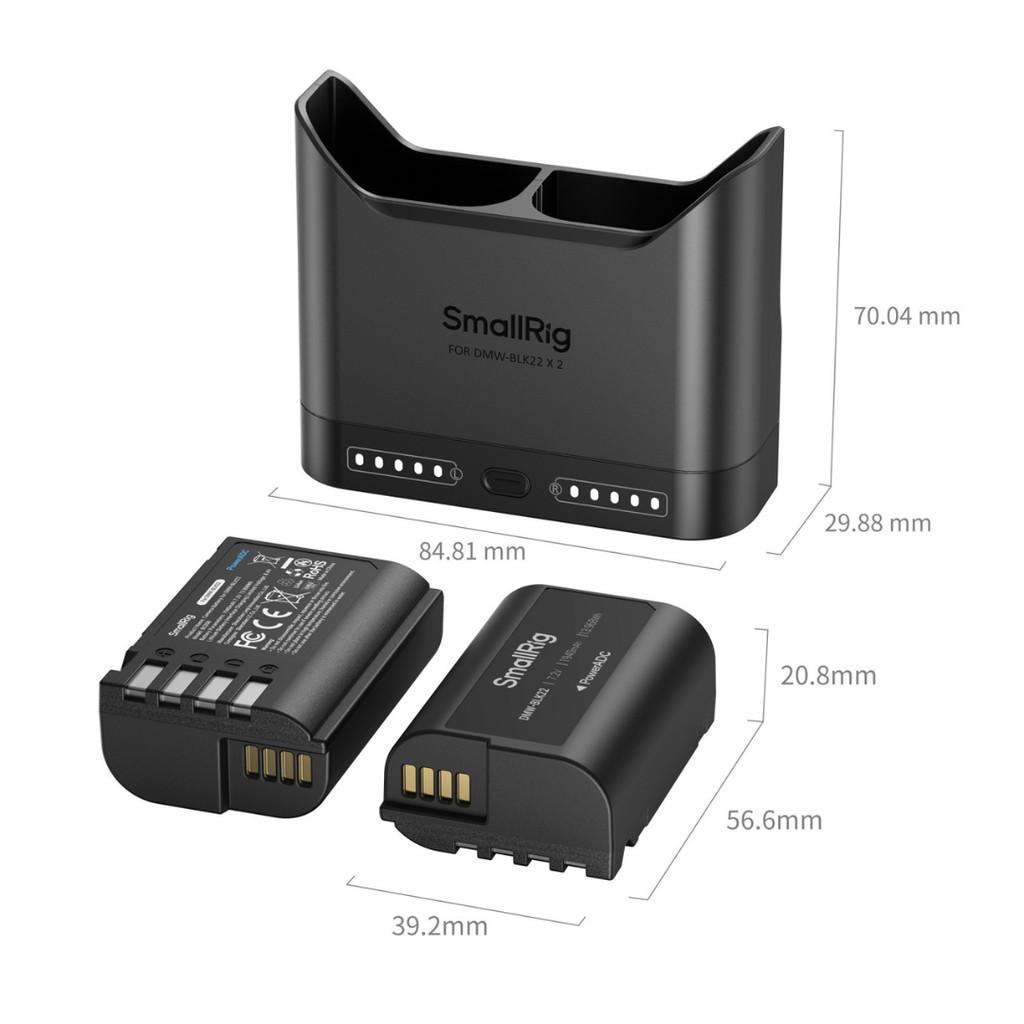

Product Dimensions: 84.8x 70.0 x 29.9mm / 3.3 x 2.8 x 1.2in
Package Dimensions: 180.0 x 123.0 x 38.0mm / 7.1 x 4.8 x 1.5in
Product Weight:223 ± 10g / 7.9 ± 0.4oz
Package Weight:296 ± 10g / 10.4 ± 0.4oz
Charger Specifications:
Material(s):PC + ABS
USB-C Input:5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
USB-C Protocol:PD3.0, QC2.0, QC3.0
Rated Output (Per Channel):8.4V / 1A
Operating Temperature:0°C to 45°C / 32°F to 113°F
Battery Specifications:
Battery Type:Lithium-ion Battery
Nominal Voltage:7.2V
Cell Capacity:1940mAh
Rated Energy:13.968Wh
Charging Limit Voltage (Li-ion Battery Interface):8.4V
Charging Current (Li-ion Battery Interface):Standard Charge: 0.2C (408mA)
Fast Charge:0.7C (1428mA)
Maximum Discharge Current:4A
Discharge Cut-off Voltage:5.0V
Charging Temperature:0°C to 45°C / 32°F to 113°F
Discharging Temperature:-10°C to 60°C / 14°F to 140°F
Material(s): PC + ABS
