1. 4-Channel Fast Charging: With 45W PD protocol input, this charger significantly boosts efficiency—fully charging 4 batteries in just 3hours—keeping your devices ready at all times.
2. Universal Protocol Compatibility: Supports 5V, 9V, 12V, and 15V inputs, including 5V/1A adapters. Smart queued charging activates based on voltage: 5V activates1 channel; 9V activates2 channels; 12V activates3 channels; and 15V can charge 4 channels simultaneously.
3. Comprehensive Safety Protection: Each output port features short-circuit and overcurrent protection, ensuring safe and dependable charging.
4. Compact and Portable Design: Lightweight and portable, this charger is ideal for both travel and daily use—your ultimate charging companion.
Note: For optimal performance, it is recommended to use a USB-C charger with an output power of 45W or higher.
Certifications:Quality Inspection Report / FCC / CE / KC / RCM/ ISED
Indicator LightFunctions:
1. When connected to a USB adapter, the charger will perform an automatic system check. The four LEDs will light in sequence and then turn off, indicating the charger is ready for use.
2. When a battery is inserted, the corresponding channel’s LEDs will blink according to the current battery level. The lit bars will increment step-by-step until all 4 LEDs remain solid, indicating a full charge.
3. When a battery is removed, the indicator lights for the corresponding channel will turn off.
4. When a battery is inserted while the charger is disconnected from power, the indicator will display the current charge level for 5 seconds. If the battery level is below 25%, the 25% indicator will blink.
5. If the input adapter power is insufficient, the charger will prioritize charging the battery with the highest charge level first, proceeding from highest to lowest until all batteries are fully charged.
6. Abnormal Status Alert: All 16 LEDs will blink rapidly to indicate an abnormal condition.
Work With
Z8, Z7Ⅱ, Z7, Z6Ⅲ, Z6Ⅱ, Z6, Z5Ⅱ, Z5, Zf, D850, D810, D810A, D780, D750, D610, D800, D800E, and other cameras using EN-EL15c batteries.
Packing List
EN-EL15cFour-Channel Charger × 1
65W USB-C to USB-C Charging Cable × 1
User Manual × 1
Guarantee Card × 1
Technical Data

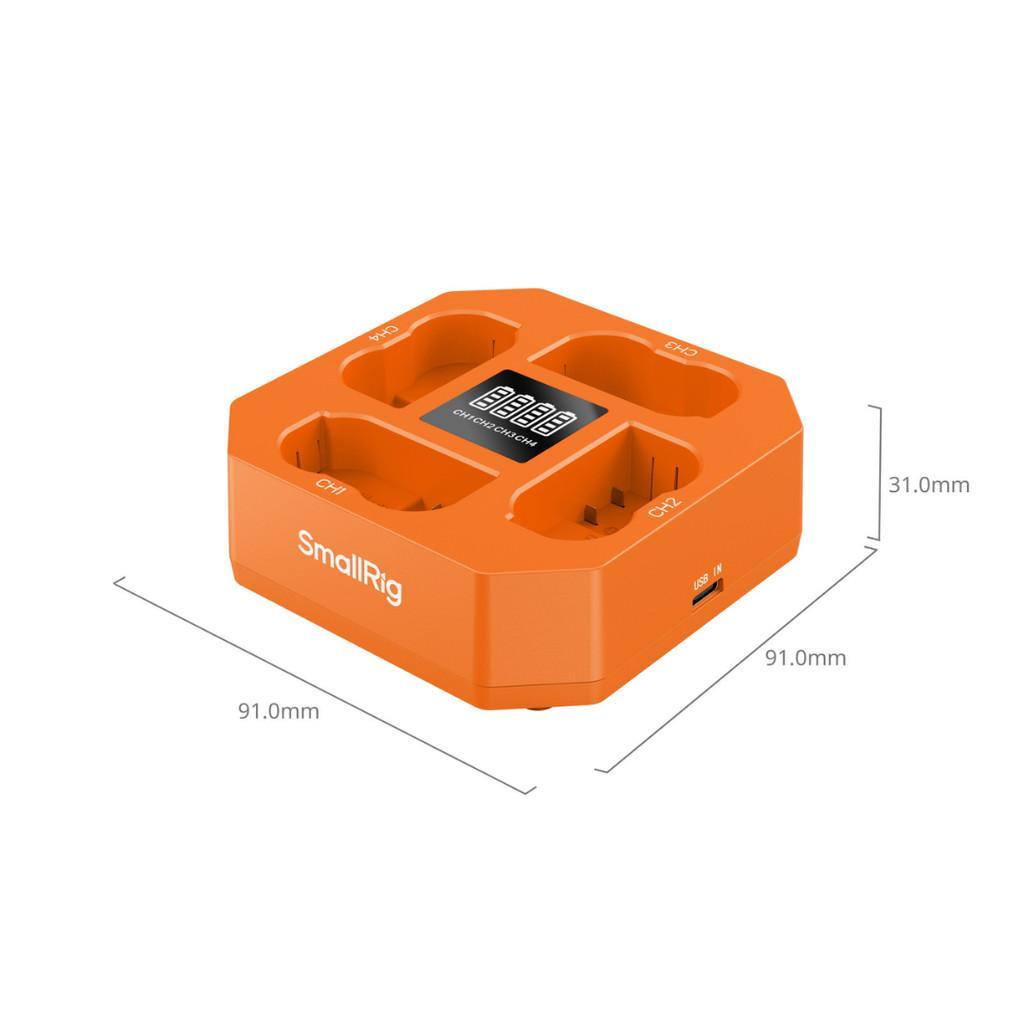

Product Dimensions: 91.0 × 91.0 × 31.0mm / 3.6 × 3.6 × 1.2in
Package Dimensions: 99.0 × 38.0 × 129.0mm / 3.9 × 1.5 × 5.1in
Product Weight: 115.0 ± 5.0g / 4.1 ± 0.2oz
Package Weight: 204.0± 5.0g / 7.48± 0.2oz
Material(s): ABS + PC
USB-C Input: 5V⎓2A, 9V⎓2A, 12V⎓2A, 15V⎓3A (Max 45W)
Output (per channel): 8.4V⎓1A
USB-C Protocol: PD
Charge Limit Voltage: 8.45V
Operating Temperature: 0°C – 45°C / 32°F – 113°F
