1. Triple-Proof Durability: 1.5m (4.9ft) drop-proof, IP54 waterproof/dustproof, and reinforced construction for reliability in harsh shooting conditions.

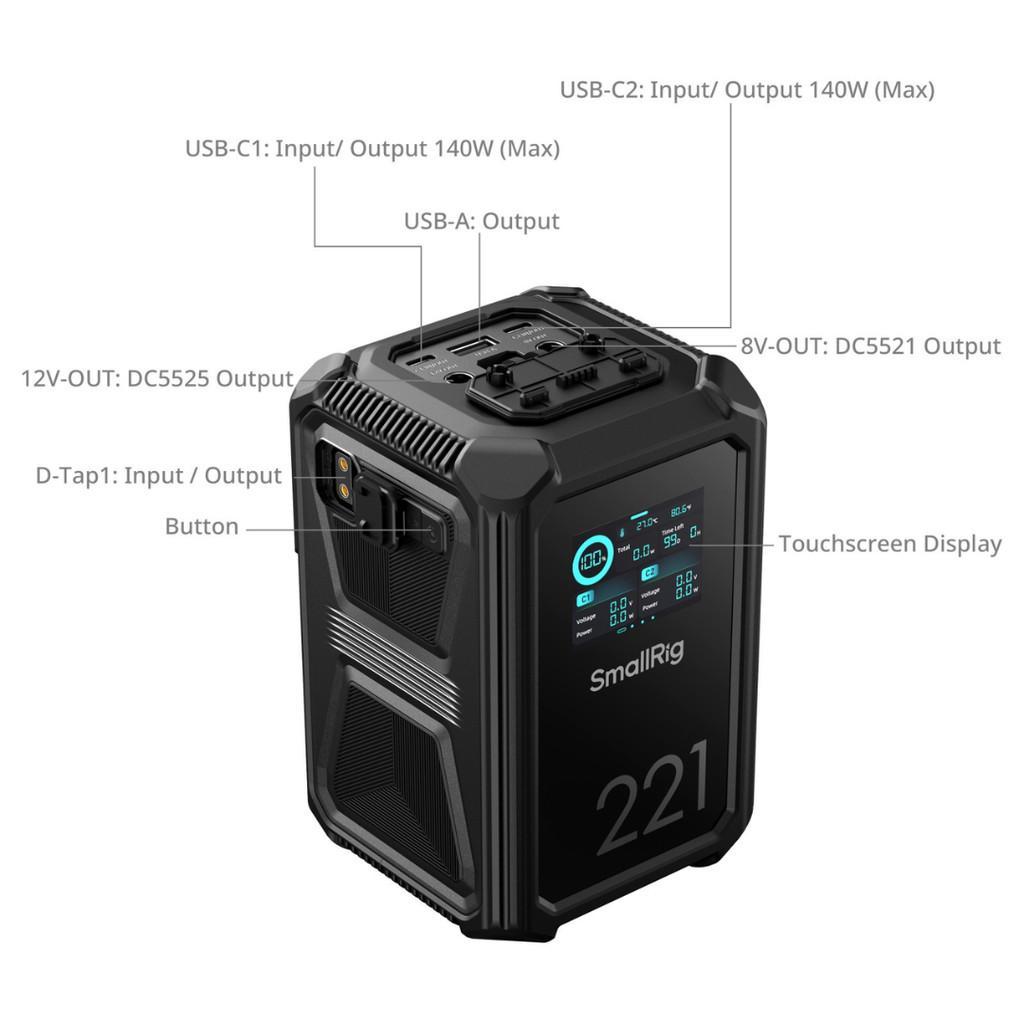

2. Multi-Port Power Hub: Features one BP port, two D-Tap ports, two USB-C ports, one USB-A port, and two DC ports, enablingsimultaneous power delivery to multiple devicesand streamlining on-set power management.
3. Smart App Control: Monitor battery levels, controlports, locate the battery, and update firmwareremotely via SmallRig SmallGoGoApp for seamless operation.
4. 140W PD 3.1Fast Charging: Fully charges in 2.5hours, deliveringrapid power to devices for uninterrupted shooting.
5. 2.0" Large Touchscreen: High-definition color screen with anti-glare coating for clear visibility and intuitive control.
6. Premium LG Cells + BMS Smart Chip: High-performance, long-lasting cells with multi-layer circuit protection ensure stable power delivery and an extended lifespan.
Certifications: FCC, CE, RoHS, ISED, PSE, KC, RCM
Work With
Mirrorless cameras, camcorders, cinema cameras, monitors, follow focus systems, wireless transmitters, LED lights, smartphones, tablets, laptops, etc.
Packing List
X221VMount Battery x 1
240W USB-CCharging Cable x 1
Operating Instruction x 1
User Manual x 1
Technical Data
Product Dimensions: 145.2 x 92.0 x 91.5mm / 5.7 x 3.6 x 3.6in
Package Dimensions: 180.0x 138.0 x 109.0mm / 7.1x 5.4x 4.3in
Product Weight: 1564 ± 10g / 55 ± 0.4oz
Package Weight: 1847 ± 10g / 65 ± 0.4oz
Material(s):Flame-retardant PC, Silicone, Aluminum Alloy
Battery Type:Lithium-ion Battery
Rated Battery Parameters:14.76V / 14910mAh / 220.0716Wh
Total Rated Output:221W
Input:
USB-C1 / USB-C2:5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)
BP / D-Tap1 / D-Tap2:16.8V⎓12A (Max)
Output:
USB-C1 / USB-C2:5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)
USB-A:5V⎓3A, 9V⎓3A, 12V⎓2.5A; 30W (Max)
BP:11.2-16.8V⎓15A
D-Tap1 / D-Tap2:11.2-16.8V⎓10A
8V-OUT:8V⎓3A (Max)
12V-OUT:12V⎓3A (Max)
Supported Protocols:
USB-C1 / USB-C2:PD3.1, PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, APPLE-2.4A
USB-A:QC3.0, QC2.0, AFC, FCP, SCP, DCP-1.5A, APPLE-2.4A
Discharge Cut-off Voltage:11.2V
Charging Temperature:0°C to 45°C / 32°F to 113°F
Discharging Temperature:-15°C to55°C /5°F to 131°F
Charging Ports:BP, D-Tap, USB-C
Drop Resistance Rating:1.5m (4.9ft)
Ingress Protection Rating:IP54
Operating Frequency/Max Power: 2402MHz~2480MHz/-9.24dBm(EIRP)
